DLP- LPC105 C
1024S控台

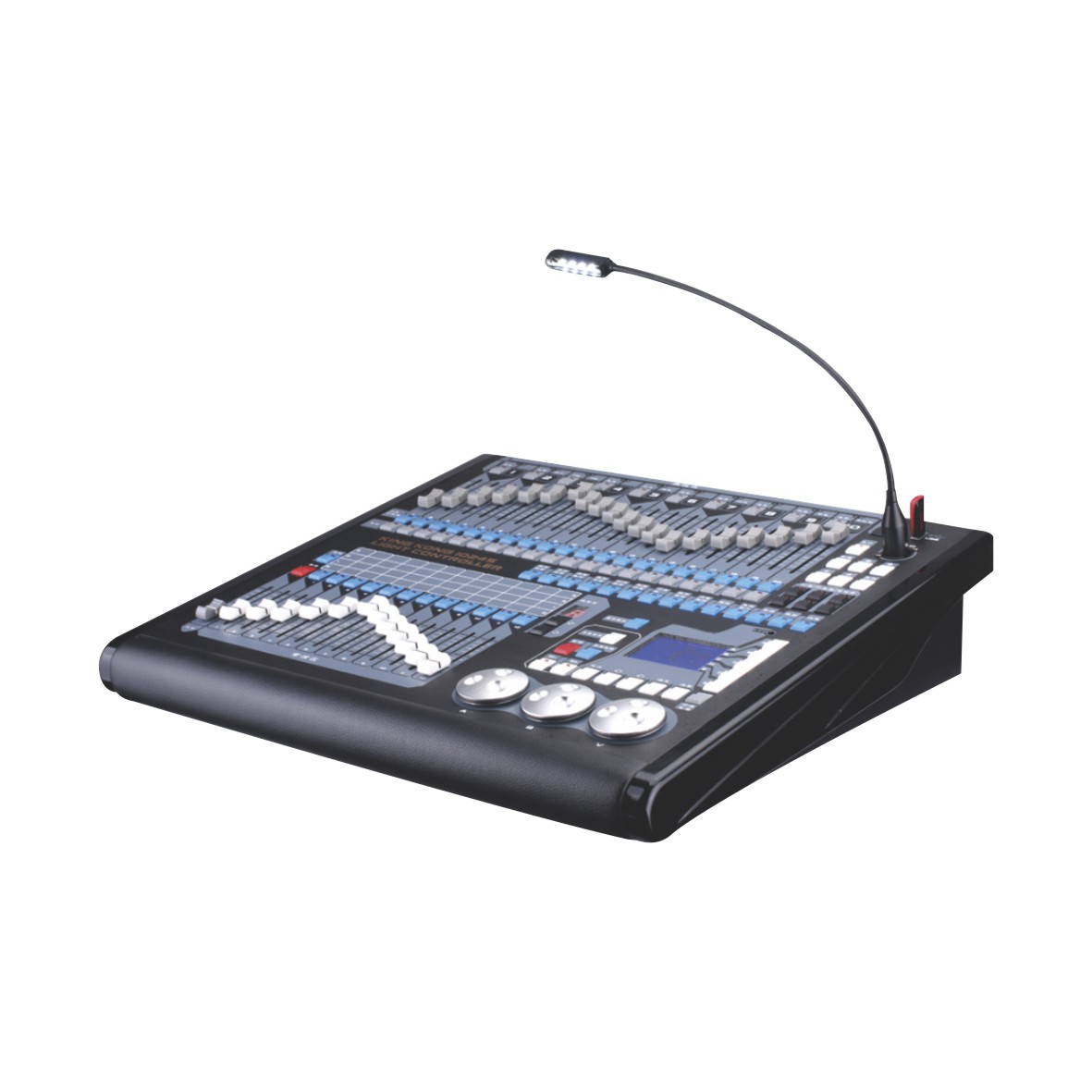

1024S Console
DMX512/1990标准，最大1024个DMX控制通道，两路光电隔离信号输出。最大控制120台电脑灯或120路调光。增加Art-Net输出口，带内置模拟器，可直接连接电脑进行灯光模拟。RDM信号输出，可直接在控台调节灯的地址码。使用珍珠灯库（R20格式灯库），且控台上可自行编写灯库。图形参数（如：振幅、速度、间隔、波浪、方向）均可独立设置，更方便快捷的做出想要的造型和场景。每个场景可保存图形数量5个；有内置时间码和外置MIDI触发功能,让您轻松实现一键声光同步的炫丽灯光秀。可储存100个素材，素材共享或者独立素材均可随心设置。素材储存模式有四种，素材储存和调用灵活便捷。可储存120个重演场景，用于储存多步场景和单步场景。每个多步场景最多可储存600个单步。可同时输出和运行12个重演场景。带12根集控推杆。按键点控和推杆集控兼容。支持重新配节地址码、垂直水平交换、通道输出反向等功能。关机或者突发断电等情况数据可记忆保持。U盘可备份控台数据，并支持重新导入到控台使用，同型号控台数据可共享。支持远程软件升级，随时随地加新的功能
产品尺寸：500*460*120mm
电源：AC 100 -240V / 50-60Hz
DMX512/1990 standard, maximum 1024 DMX control channels, two optically isolated signal outputs. Maximum control of 120 computer lights or 120 channels of dimming. Increase the Art-Net output port, with a built-in simulator, which can be directly connected to a computer for lighting simulation. RDM signal output, the address code of the lamp can be adjusted directly on the console. Use the pearl lamp library (R20 format lamp library), and you can write the lamp library yourself on the console. Graphic parameters (such as: amplitude, speed, interval, wave, direction) can be set independently, making it easier and faster to make the desired shape and scene. Each scene can save 5 graphics; it has built-in time code and external MIDI trigger function, allowing you to easily realize a dazzling light show with one-key sound and light synchronization. 100 materials can be stored, shared or independent materials can be set freely. There are four material storage modes, and the material storage and recall are flexible and convenient. 120 replay scenes can be stored for storing multi-step scenes and single-step scenes. Each multi-step scene can store up to 600 single steps. It can output and run 12 replay scenes at the same time. With 12 centralized control putters. The key point control is compatible with the push rod centralized control. It supports functions such as reconfiguration of section address codes, vertical and horizontal switching, and channel output reverse. Data about shutdown or sudden power failure can be memorized and kept. The U disk can back up the console data and support re-importing to the console for use. The console data of the same model can be shared. Support remote software upgrade, add new functions anytime, anywhere
Product size: 500*460*120mm
Power supply: AC 100 -240V / 50-60Hz
