DLP- LPC106 C
1024P控台

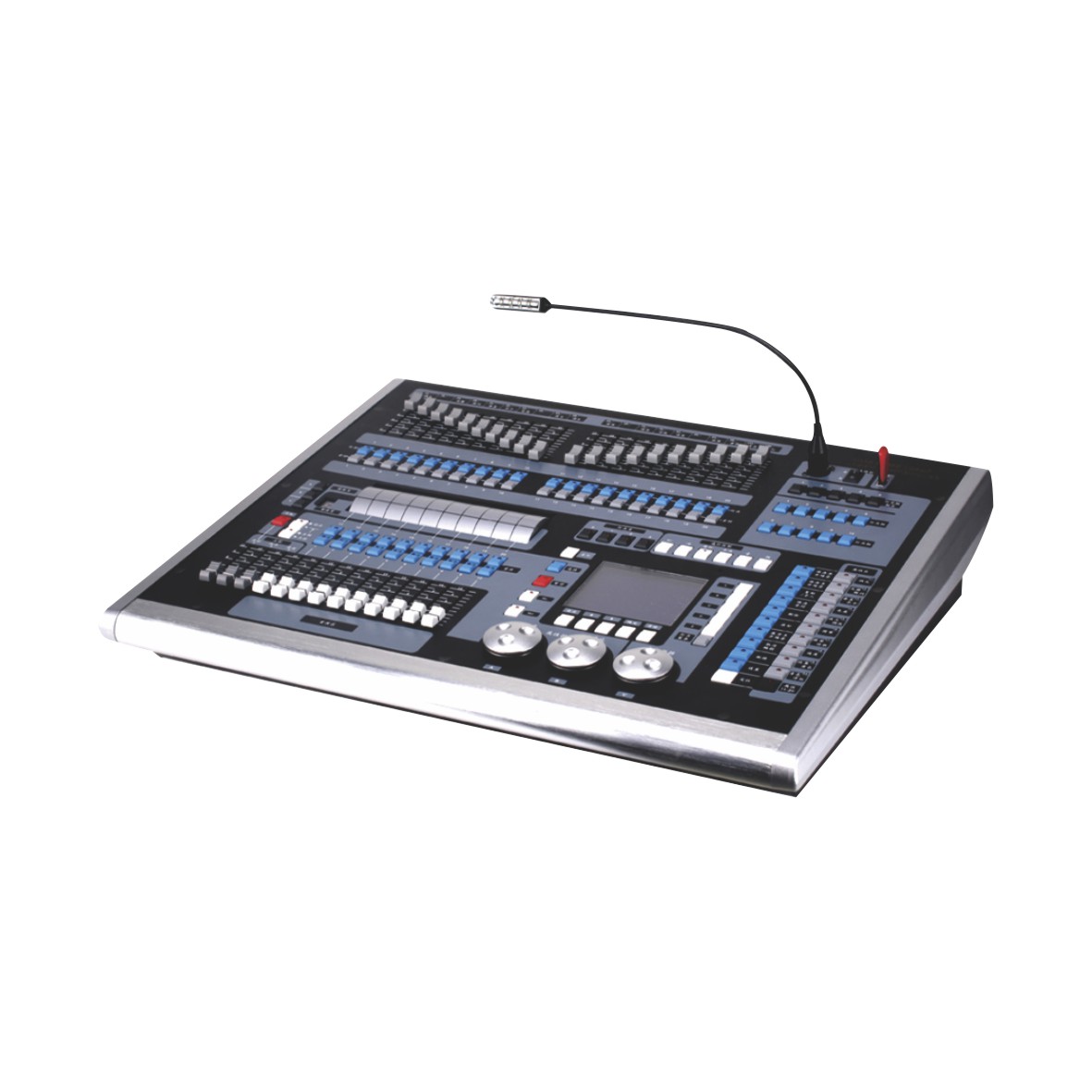

1024P Console
DMX512/1990标准，最大1024个DMX控制通道，俩路光电隔离信号输出。最大控制80台电脑灯或80路调光。使用珍珠灯库（R20格式灯库），且控台上可自行编写灯库。图形参数（如：振幅、速度、间隔、波浪、方向）均可独立设置，更方便快捷的做出想要的造型和场景。每个场景可保存图形数量5个；同时可运行图形数量10个。有节目录制功能，最多可储存100个节目，灯光秀演示一劳永逸。可储存100个素材，素材共享或者独立素材均可随心设置。素材储存模式有一种，素材储存和调用灵活便捷。可储存600个重演场景，用于储存多步场景和单步场景。每个多步场景最多可储存600个单步。可同时输出和运行20个重演场景。带10根集控推杆和10个集控按键。按键点控和推杆集控兼容。支持重新配节地址码、垂直水平交换、通道输出反向等功能。关机或者突发断电等情况数据可记忆保持。具有预编程功能，离线事先编程，省事省心。预置推杆可控制电脑灯的属性，属性控制更方便快捷。支持立即黑场、场景互锁。专业鹅颈工作灯，适合室内外演出使用。（选配）
产品尺寸：650*550*140mm
电源：AC 100 -240V / 50-60Hz
DMX512/1990 standard, maximum 1024 DMX control channels, two optically isolated signal outputs. Maximum control of 80 computer lights or 80 channels of dimming. Use the pearl lamp library (R20 format lamp library), and you can write the lamp library yourself on the console. Graphic parameters (such as: amplitude, speed, interval, wave, direction) can be set independently, making it easier and faster to make the desired shape and scene. Each scene can save 5 graphics; at the same time, 10 graphics can be run. There is a program recording function, up to 100 programs can be stored, and the light show demonstration is done once and for all. 100 materials can be stored, shared or independent materials can be set freely. There is one material storage mode, which is flexible and convenient for material storage and recall. It can store 600 replay scenes for storing multi-step scenes and single-step scenes. Each multi-step scene can store up to 600 single steps. It can output and run 20 replay scenes at the same time. With 10 central control push rods and 10 central control buttons. The key point control is compatible with the push rod centralized control. It supports functions such as reconfiguration of section address codes, vertical and horizontal switching, and channel output reverse. Data about shutdown or sudden power failure can be memorized and kept. With pre-programming function, offline pre-programming, save trouble and worry. The preset fader can control the attributes of scanners, which makes the attribute control more convenient and quick. Supports immediate blackout and scene interlocking. Professional gooseneck work light, suitable for indoor and outdoor performances. (Optional)
Product size: 650*550*140mm
Power supply: AC 100 -240V / 50-60Hz
