DLP- LPC107 C
1024控台

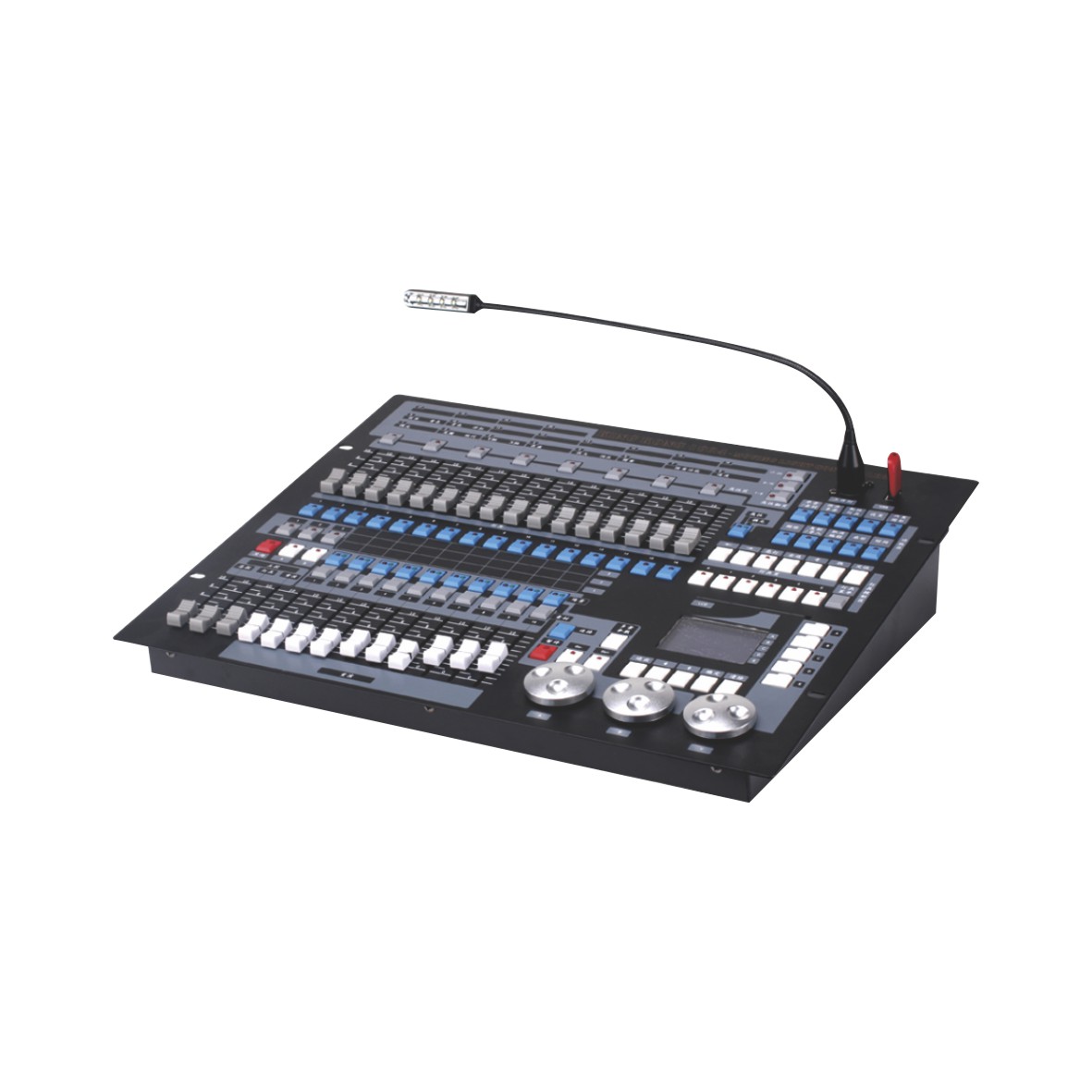

1024 Console
DMX512/1990标准，最大1024个DMX控制通道，两路光电隔离信号输出。最大控制96台电脑灯或96路调光。增加Art-Net输出口，带内置模拟器，可直接连接电脑进行灯光模拟。RDM信号输出，可直接在控台调节灯的地址码。使用珍珠灯库（R20格式灯库），且控台上可自行编写灯库。带背光的LCD显示屏，首创的中英文显示可切换界面。面板中英文可选。内置图形轨迹发生器，有135个内置图形，方便用户对电脑灯进行图形轨迹控制，如画圆、螺旋、彩虹、追逐等多种效果。图形参数（如：振幅、速度、间隔、波浪、方向）均可独立设置，更方便快捷的做出想要的造型和场景。每个场景可保存图形数量5个；同时可运行图形数量10个。可储存60个素材，60个重演场景，用于储存多步场景和单步场景。关机或者突发断电等情况数据可记忆保持。支持远程软件升级，随时随地增加新的功能。预置推杆可控制电脑灯的属性，属性控制更方便快捷。支持立即黑场、专业鹅颈工作灯，适合室内外演出使用。（选配）
产品尺寸：485*400*105mm
电源：AC 100 -240V / 50-60Hz
DMX512/1990 standard, maximum 1024 DMX control channels, two optically isolated signal outputs. Maximum control of 96 computer lights or 96 dimming channels. Increase the Art-Net output port, with a built-in simulator, which can be directly connected to a computer for lighting simulation. RDM signal output, the address code of the lamp can be adjusted directly on the console. Use the pearl lamp library (R20 format lamp library), and you can write the lamp library yourself on the console. LCD display with backlight, the first Chinese and English display can be switched interface. The panel is available in Chinese and English. Built-in graphics trajectory generator, there are 135 built-in graphics, it is convenient for users to control the graphics trajectory of the scanner, such as drawing circle, spiral, rainbow, chase and other effects. Graphic parameters (such as: amplitude, speed, interval, wave, direction) can be set independently, making it easier and faster to make the desired shape and scene. Each scene can save 5 graphics; at the same time, 10 graphics can be run. It can store 60 materials and 60 replay scenes for storing multi-step scenes and single-step scenes. Data about shutdown or sudden power failure can be memorized and kept. Support remote software upgrades, adding new functions anytime, anywhere. The preset fader can control the attributes of scanners, which makes the attribute control more convenient and quick. Supports immediate blackout, professional gooseneck work lights, suitable for indoor and outdoor performances. (Optional)
Product size: 485*400*105mm
Power supply: AC 100 -240V / 50-60Hz
