DLP- LPC123 C
DMX2024 控台

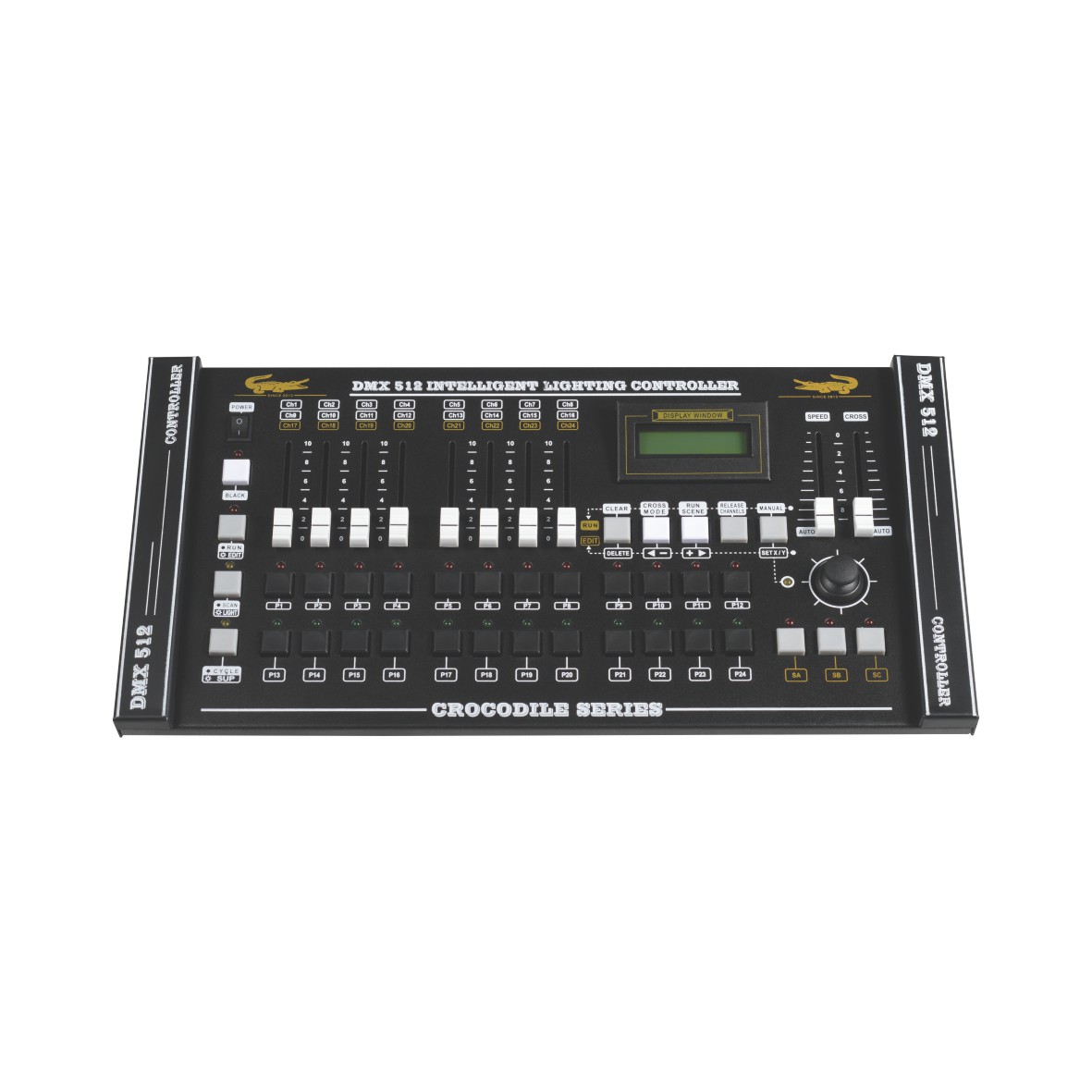

DMX2024 Console
DMX512/1990信号输出，504个控制通道
LCD液晶显示屏,LED指示灯
可同时控制20台24通道电脑灯+24调光通道， 8个通道的控制推子
一个可设置的摇杆装置可提灯操作
24个走灯程序,可以循环运行程序，每个程序最大40步；可以同时运行8个程序； 共960个电脑灯走灯程序步
0 -25.5秒的场景渐变时间(Cross)调节范围； 0.1-25.5秒的走灯速度 (Speed) 调节范围
各程序速度、渐变值自动记忆；512K 大容量记忆
关机数据保存
DMX信号输出连接器：XLR-D3F
电源输入：DC9V 1000mA
外形尺寸：485×250×91mm
重量：3.8kg
DMX512/1990 signal output, 504 control channels
LCD liquid crystal display, LED indicator
Can control 20 sets of 24-channel computer lights + 24 dimming channels at the same time, 8 channels of control faders
A configurable rocker device can be operated by lantern
24 chases can be run in cycles, each with a maximum of 40 steps; 8 chases can be run at the same time; a total of 960 scanner chases
0-25.5 seconds of scene transition time (Cross) adjustment range; 0.1-25.5 seconds of chase speed (Speed) adjustment range
Automatic memory of each program speed and gradient value; 512K large-capacity memory
Shutdown data saving
DMX signal output connector: XLR-D3F
Power input: DC9V 1000mA
Dimensions: 485×250×91mm
Weight: 3.8kg
